JRready YJQ-H2Q-1.0 Four-indent Pneumatic Crimping Tool

1. Suitable for crimping pin and sheath, Crimp outside diameter is 1.99mm, Pin specifications is 1.0mm;
2. Pin model:Y11-0000-29;
3. Sheath model:Y11-0000-03;
4. Four-impression crimping, circumferential distribution, impressions are in the same plane;
5. Adapts 86-37,86 series of positioners.

/upload/manual/ENV/Q1102_H2Q1_ENV_WB_P.pdf

Detailed information
Video
商城入口
规格说明书
使用说明书

Brand: JRready	Standard: /	Model: YJQ-H2Q-1.0
Crimped Shape: Four-indent Four-impression	Material: Mould Steel	Selector Number: 8
Dimension (mm): 218.459.358.5	Thru-Hole Diameter (mm): Φ3.96	Productivity (pcs/min): 30-40
Internal Number: Q1102	Weight (g): 1061	Air Supply & Working Air Pressure (Bar): 5.5-8.3
YJQ-H2Q-1.0 four-indent pneumatic crimping tool is a customized crimp tool applied to the sheath crimping. The inner diameter of the pin is 1mm, the outer diameter of the sheath is 1.99mm. Four-impression crimping, circumferential distribution, impressions are in the same plane.

Features

1. Material of Mould Steel (Good Durability & Good Anti-deformation & Good appearance & Anti-rust)

2. Four-indent Crimp Tool (more stable & more reliable)

3. 8 Selector Numbers (Adjustable crimping ranges in different selector number, more convenient for wider applications)

Crimp Range

Series	Internal Number	Model	Pin Specifications	Terminal Outside Diameter	Selector No.
YJQ-H2Q-**Four-indent Pneumatic Crimping Tool	Q1101	YJQ-H2Q-0.77	Φ0.77mm	Φ1.55mm	NO.5（1.15-1.25mm）
	Q1102	YJQ-H2Q-1.0	Φ1.0mm	Φ1.99mm	NO.5（1.50-1.60mm）
	Q1103	YJQ-H2Q-1.5	Φ1.5mm	Φ2.54mm	NO.5（2.06-2.17mm）
	Q1104	YJQ-H2Q-1.7	Φ1.7mm	Φ2.83mm	NO.6（2.35-2.40mm）
	Q1105	YJQ-H2Q-2.5	Φ2.5mm	Φ4.0mm	NO.6（3.55-3.60mm）

The crimping tool adopts curve propulsion mechanism, its applied force transfers through four curves in the head cavity of the right plier handle to the four indenters. The four intenders do the centripetal linear motion, which makes its front-end teeth crimp the contact to complete the crimping process. The cycle controlled precision ratchet assures the consistency of impression and the crimping quality of wires and contacts.

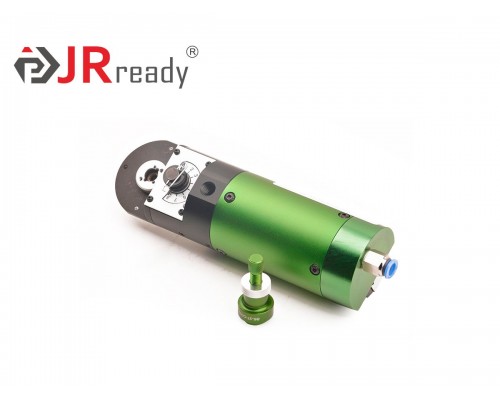

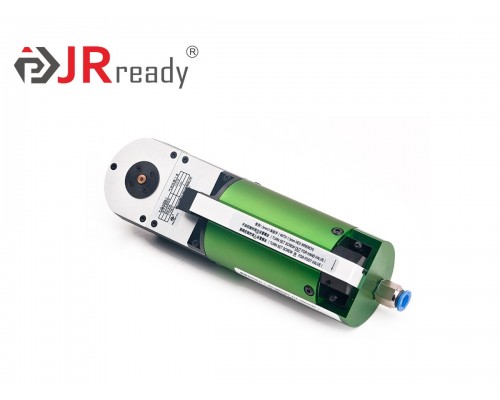

Picture of the whole set
